Frame Types & Sizes

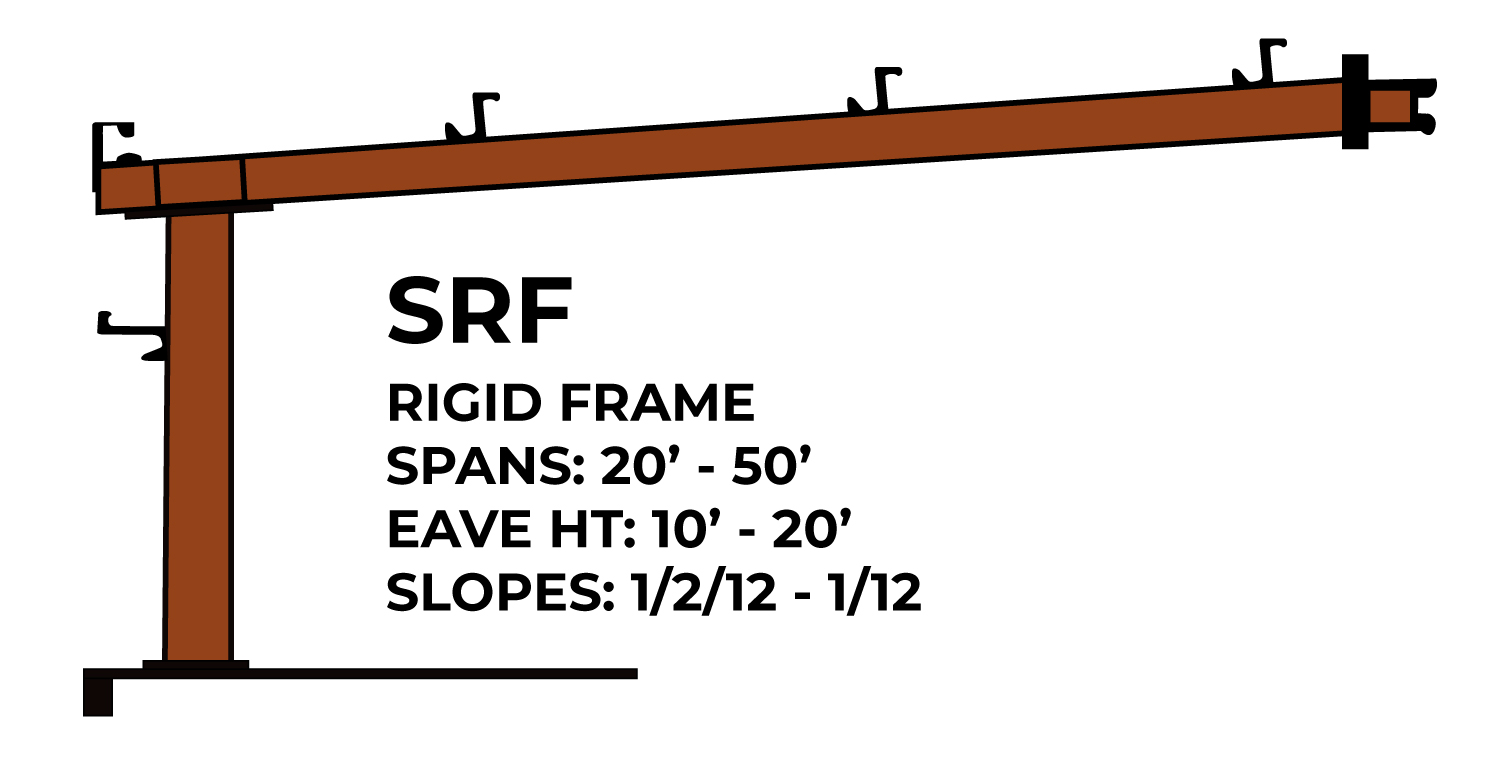

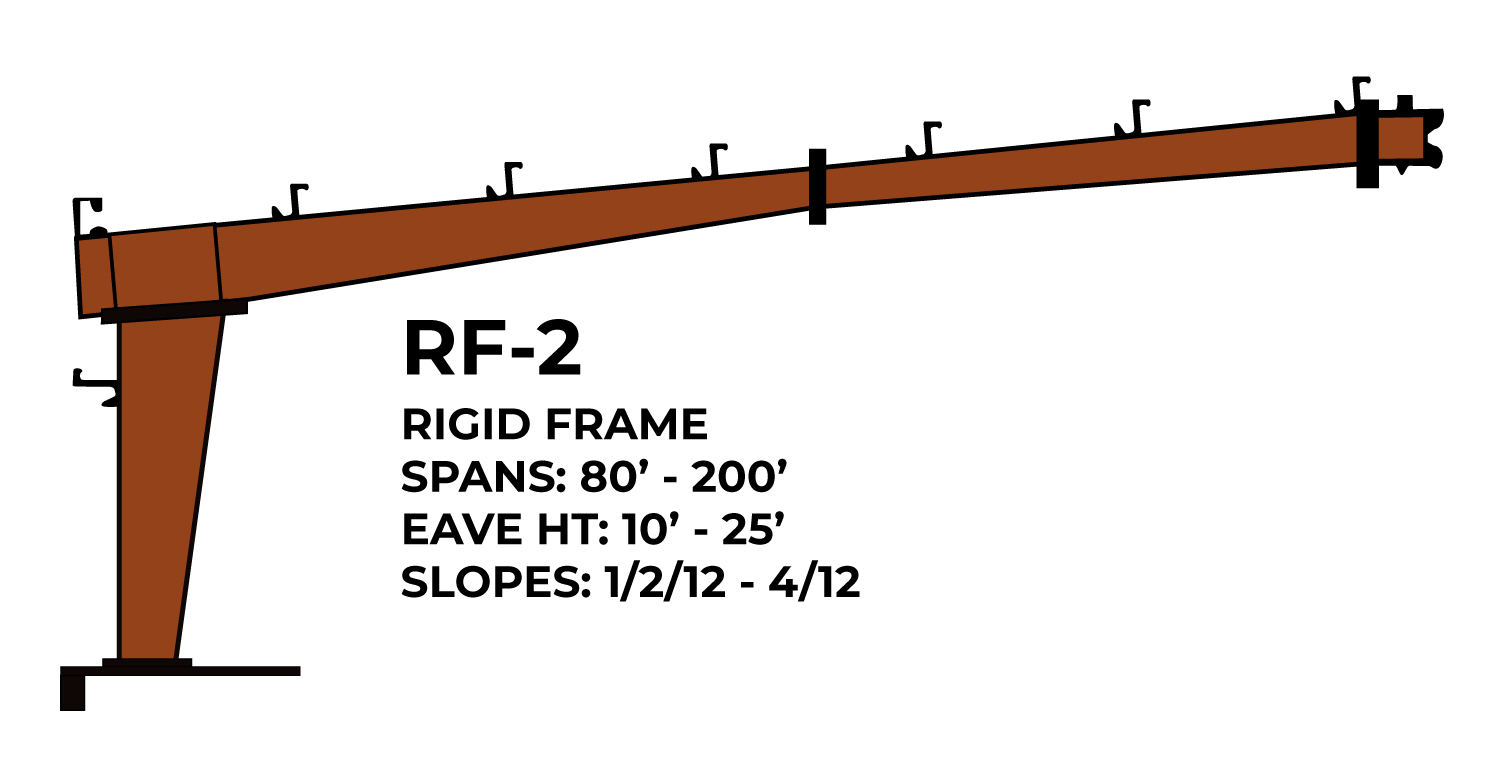

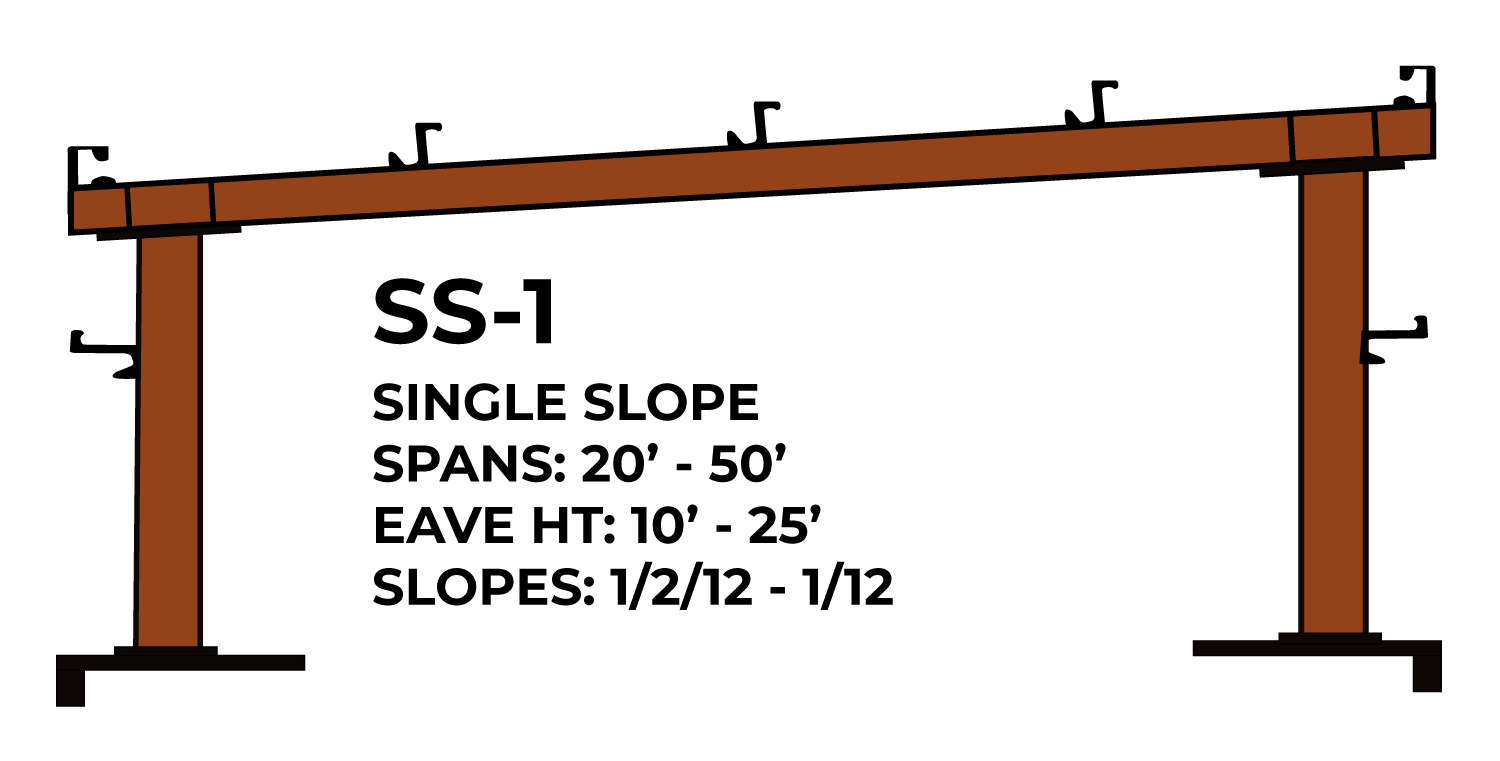

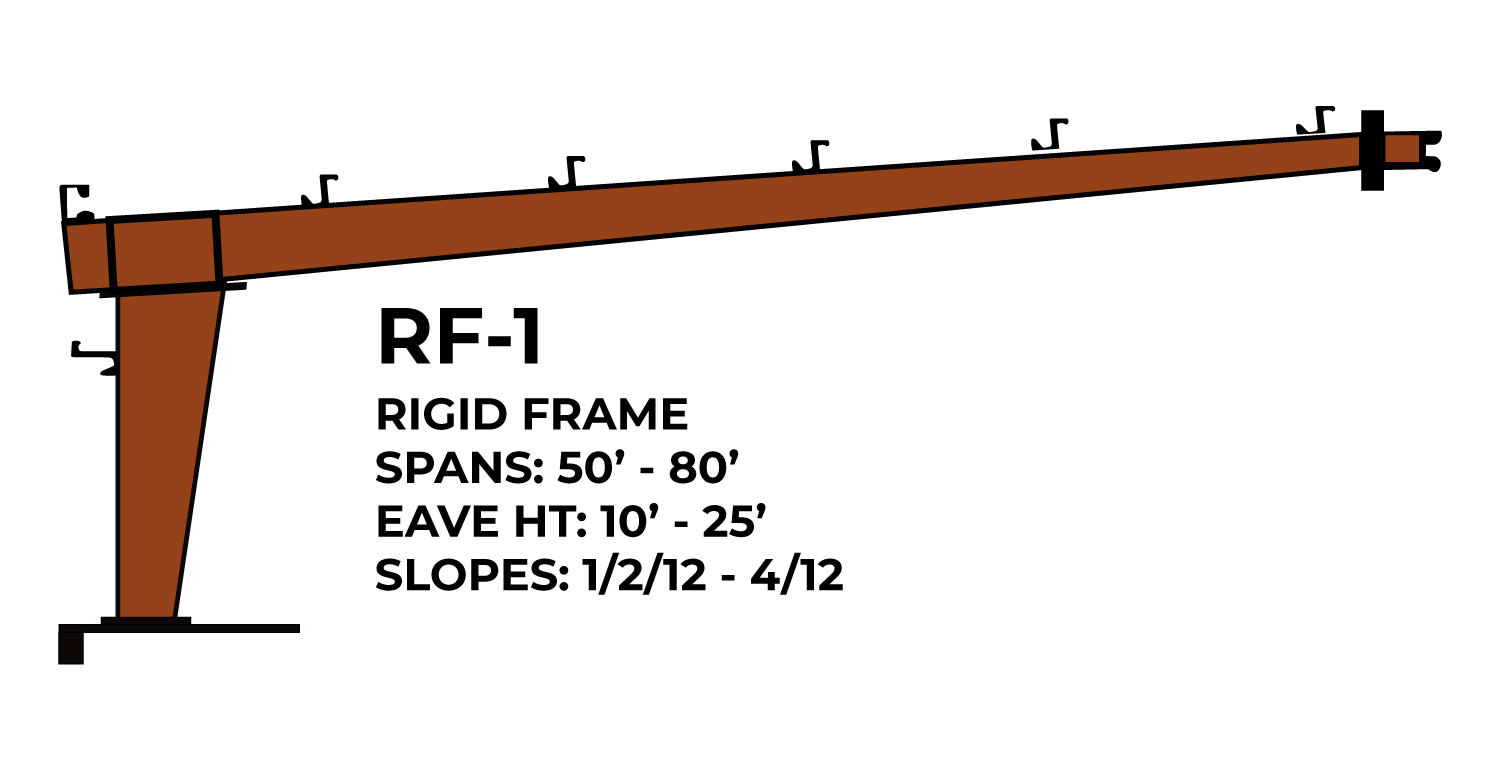

Steel-Buildings-SRF Steel-Buildings-SS Steel-Buildings-RF Steel-Buildings-RF Steel-Buildings-MS

Galindo Steel Buildings Features

Exceptionally great features
Standard on all Galindo Steel Buildings


Roof Sheets : 26 gages, 80 KSI (80,000 pounds per square feet tensile strength), 36” coverage PBR (purlin – bearing – leg) PANEL, available in Galvalume or Color (galvalume base with 20-year warranty Factory coating applied).

Wall Sheets : 26 gages, 80 KSI (80,000 pounds per square feet tensile strength), 36” coverage PBR (purlin – bearing – leg) PANEL, available in Galvalume or Color (galvalume base with 20-year warranty Factory coating applied).

Die – Formed Ridge Caps : with the same profile as roof sheets, they are formed to specific roof slope to lap over roof corrugations for a weather tight roof.

Trim : 26 gage, sculptured rake trim, sculptured eave trim (or optional sculptured gutter), corner trim, head and jamb trim (for optional framed openings), are provided in up to fifteen Factory coated colors to choose from.

Roof And Wall Screws : Self-drilling tech screws and/or lap tech screws, are cadmium plated with neoprene washers and are provided in matching colors for the roof, walls, and trim.

Roof Mastic : provided to be placed between laps on roof sheets and die-formed ridge caps to help ensure a more weather tight roof.

Closure Strips : closed cell polyethylene foam strips are provided on eaves at roof sheets and at base of Wall sheets.

Secondary Framing Members : purlins, girts, doorjambs, corner columns, interior columns, end wall rafters, and sheeting angle are provided with a rust-resistant galvanized coating.
